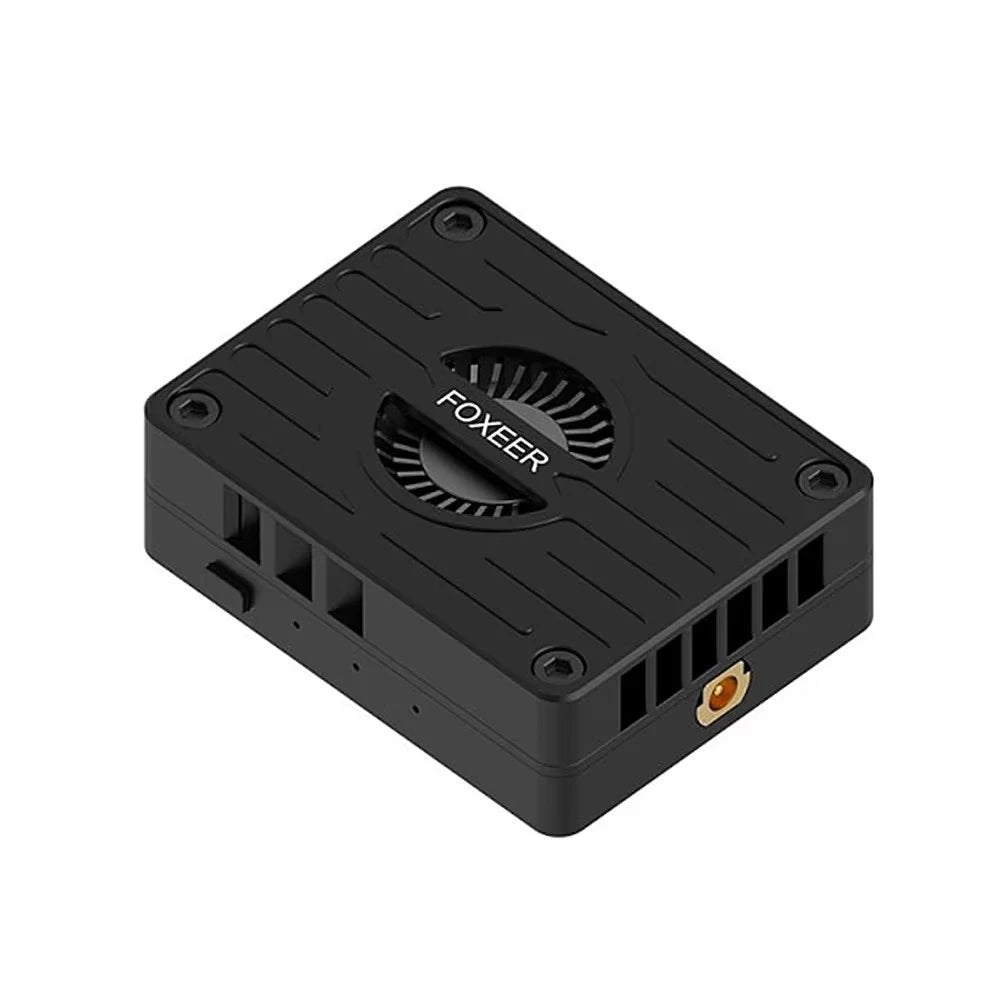

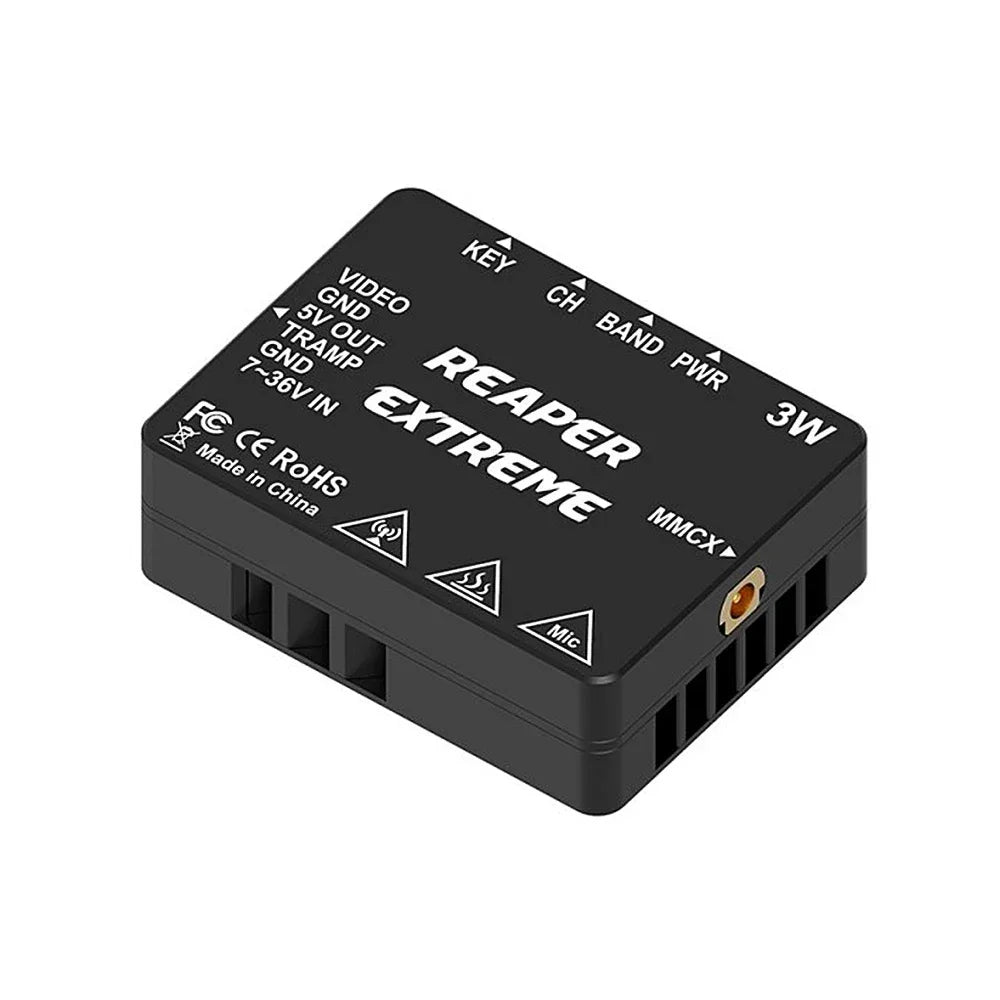

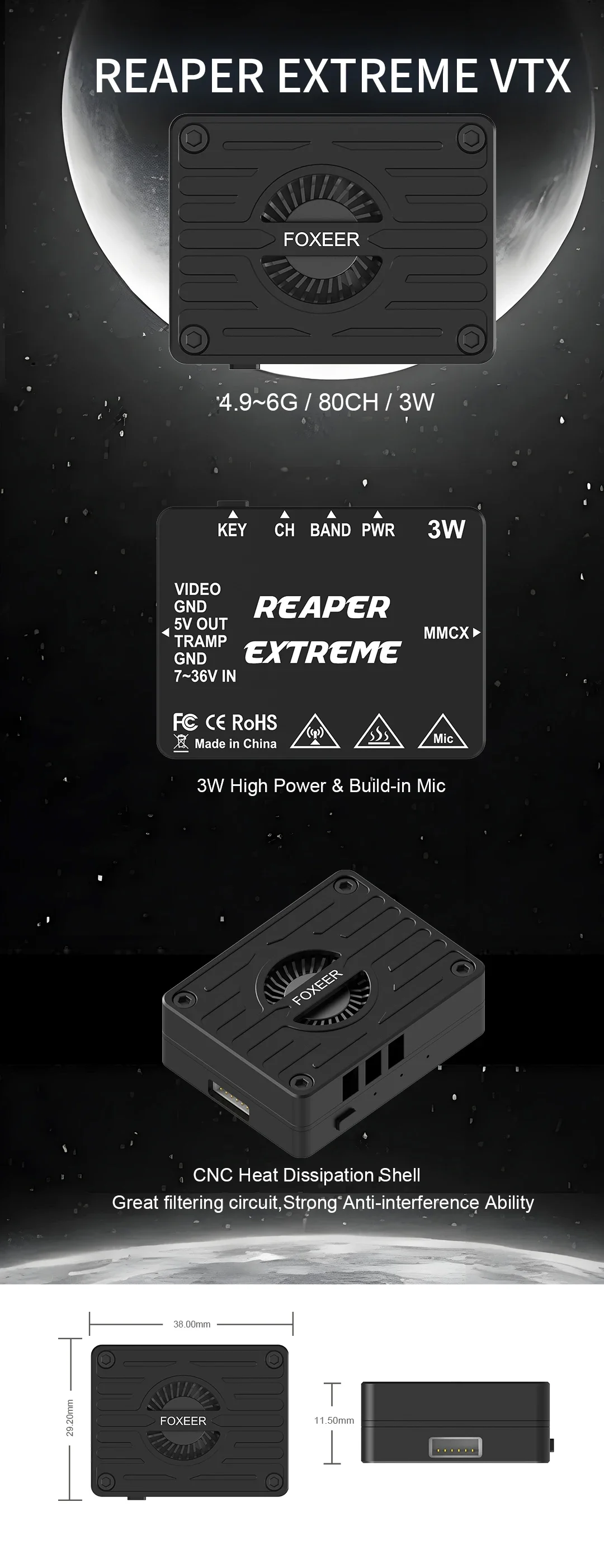

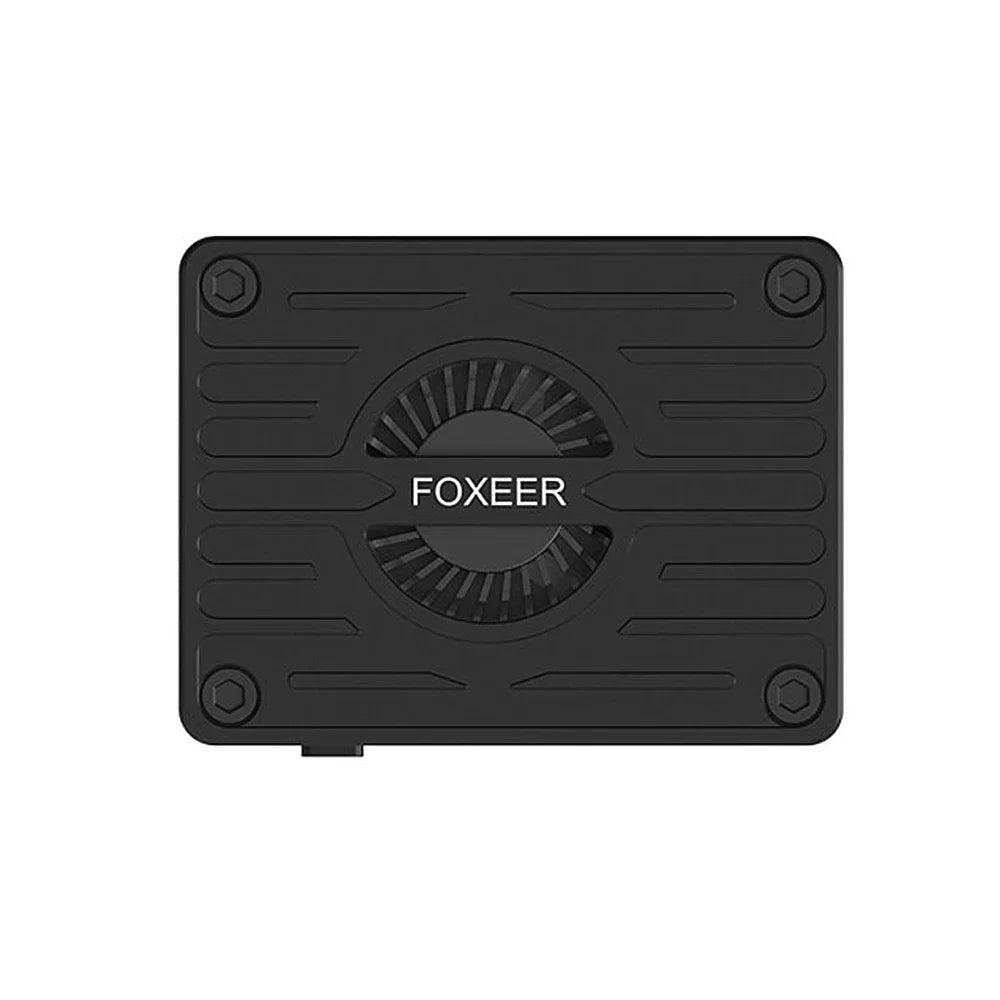

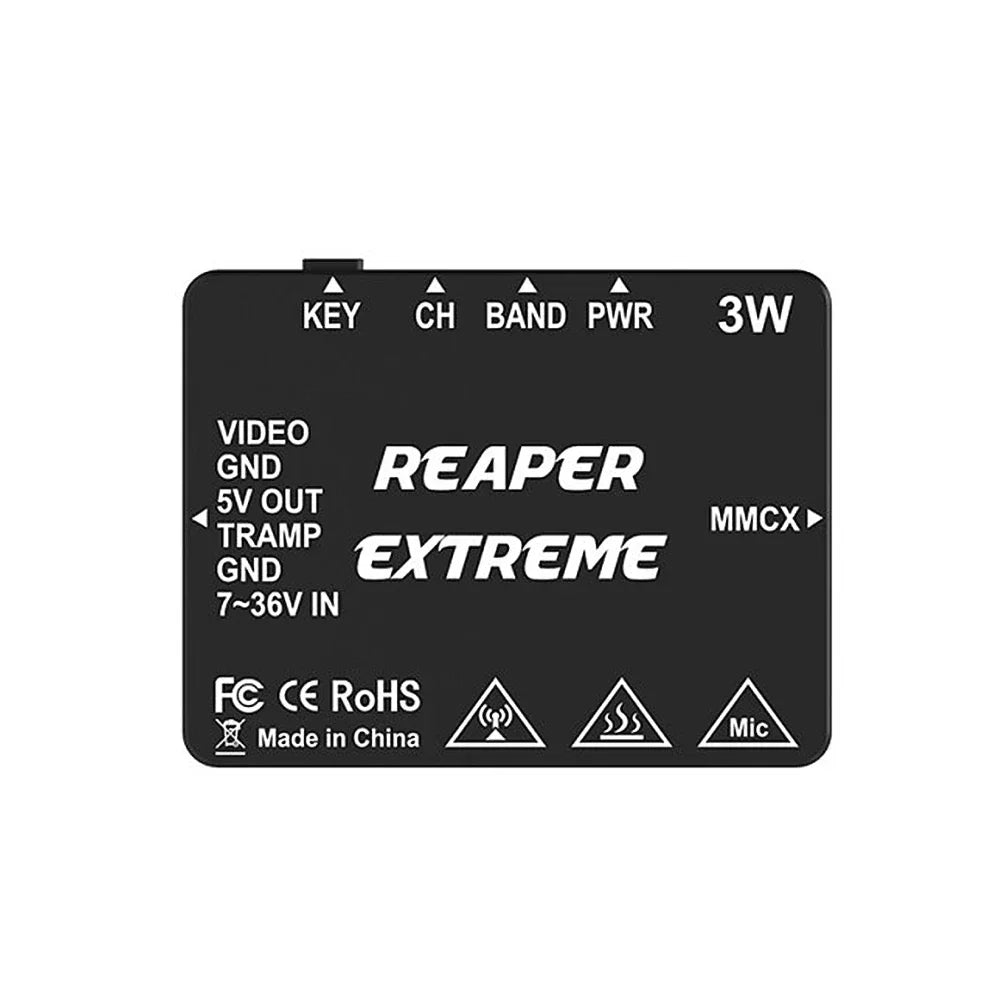

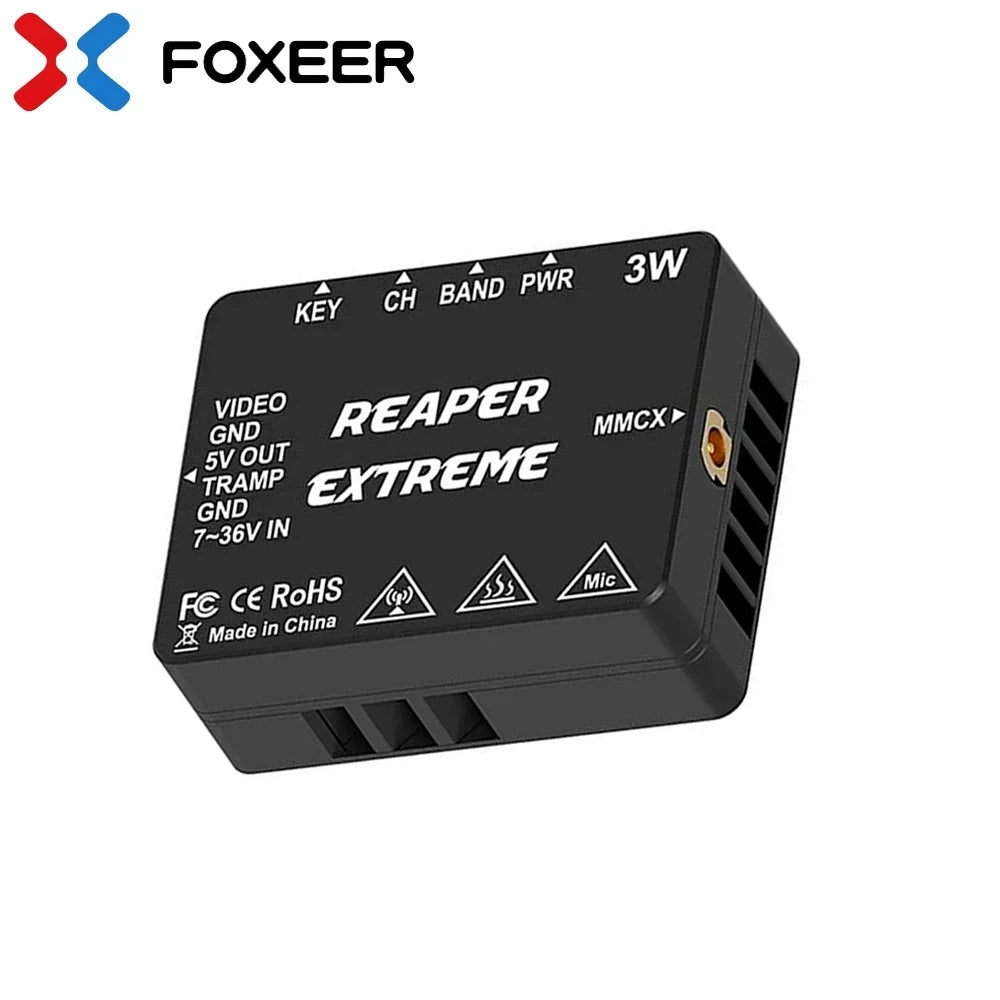

FOXEER 4.9~6G Reaper Extreme 3W 80CH VTx

FOXEER 4.9~6G Reaper Extreme 3W 80CH VTx

Обычная цена $43.68 USD
Обычная цена $0.00 USD Цена со скидкой $43.68 USD
Распродажа Продано

В наличии: 369

Количество
FOXEER 4.9-6G Reaper Extreme 3W 80CH VTX 9-36V 15.2g 25mW/ 200mW/ 500mW/ 1.5W/ 3W Adjustable for Long Range RC FPV Drone

Specifications

Name

Reaper Extreme 3W V2

Input Voltage

9~36V

Output Voltage

5V

Channels

80CH

Power

25mW/200mW/500mW/1.5W/3W

Pit

Double click to enter

Fan

Yes

Weight

15.2g

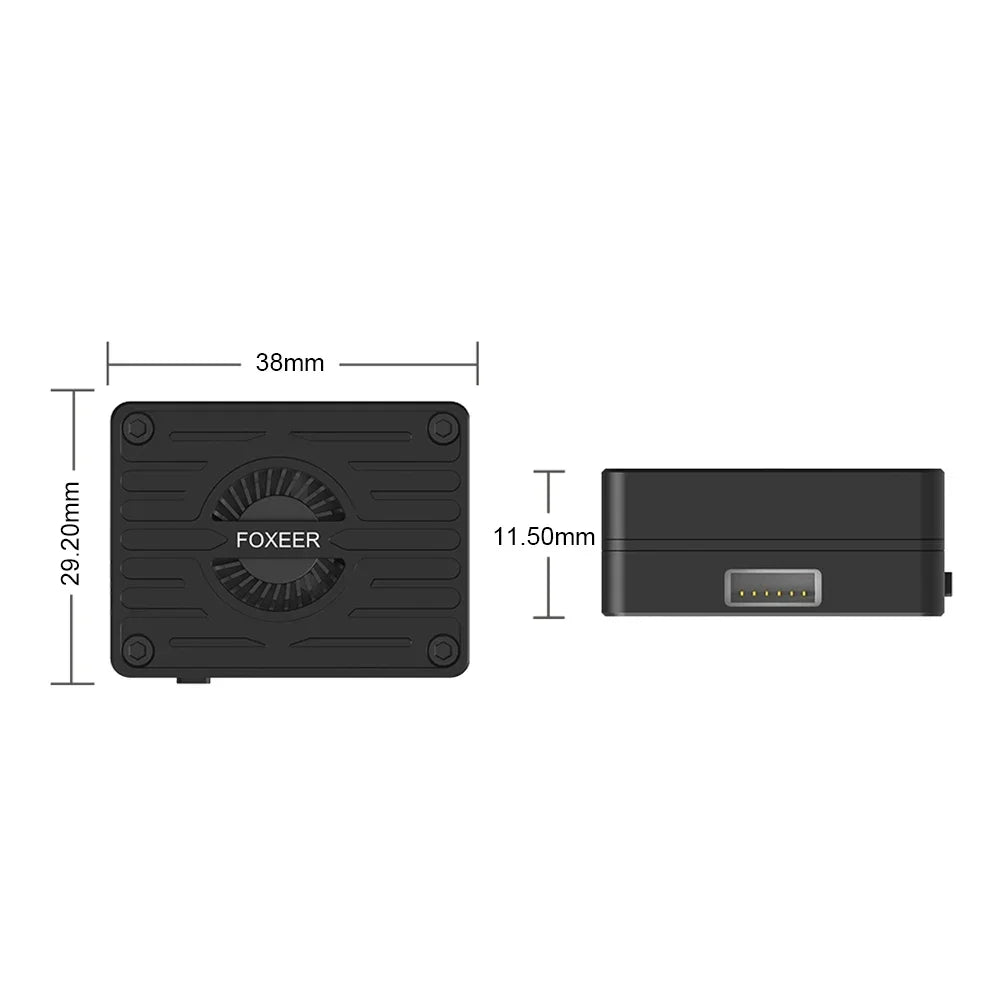

Size

38*29.2*11.5mm

Consumption

1.4A/10V

Package Includes

1 x VTx; 1 x silicon cable;


Band

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Band A

5865

5845

5825

5805

5785

5765

5745

5725

Band B

5733

5752

5771

5790

5809

5828

5847

5866

Band E

5705

5685

5665

5645

5885

5905

5925

5945

Band F

5740

5760

5780

5800

5820

5840

5860

5880

Band R

5658

5695

5732

5769

5806

5843

5880

5917

Band H

5653

5693

5733

5773

5813

5853

5893

5933

Band L

5333

5373

5413

5453

5493

5533

5573

5613

Band U

5325

5348

5366

5384

5402

5420

5438

5456

Band O

5474

5492

5510

5528

5546

5564

5582

5600

Band X

4990

5020

5050

5080

5110

5140

5170

5200

PIT On/Off:

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
