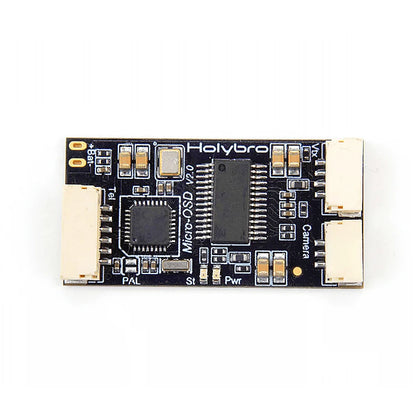

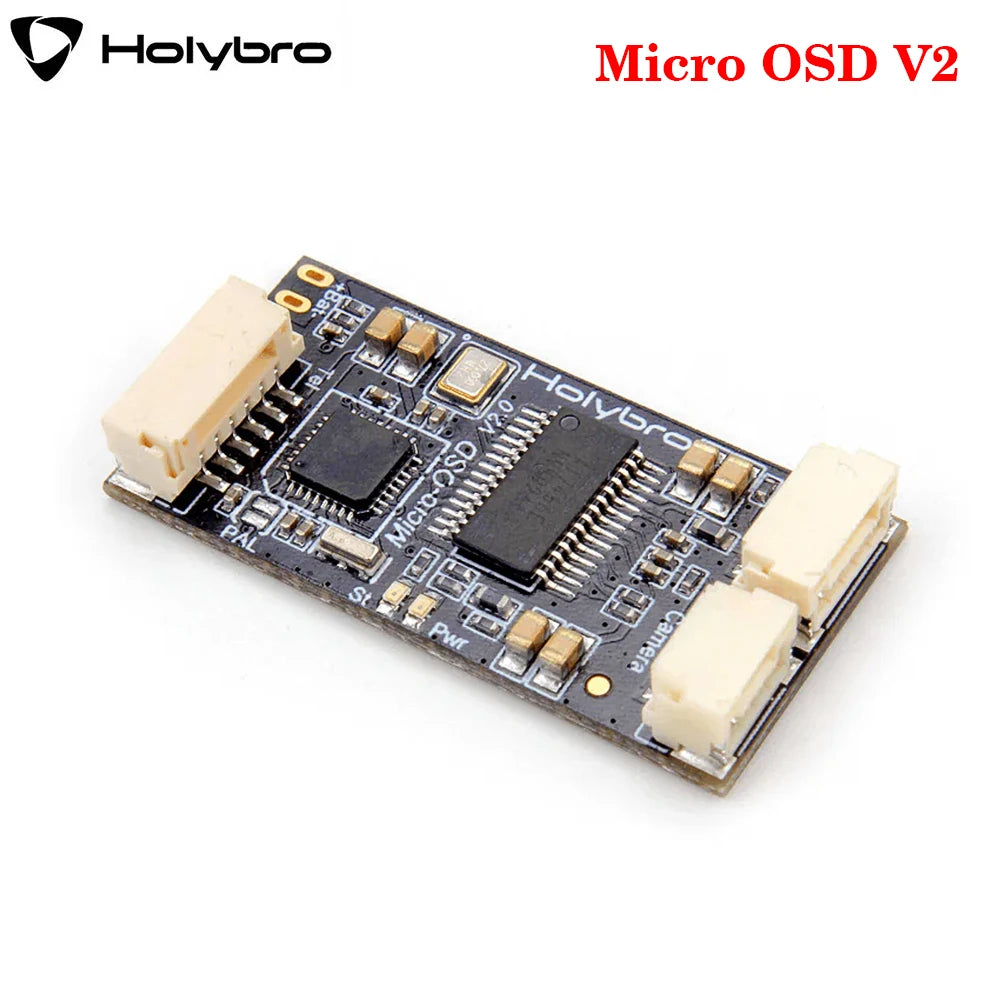

Holybro Micro OSD V2

VTX & OSD

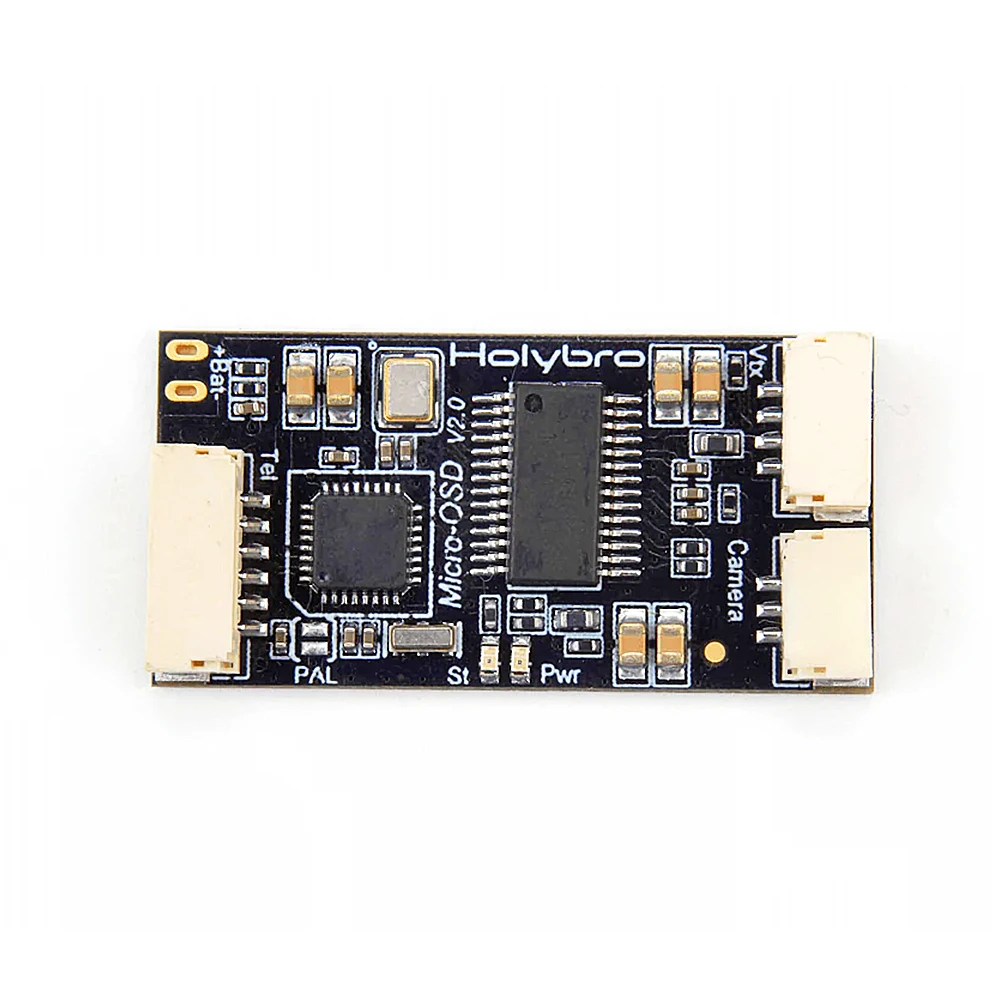

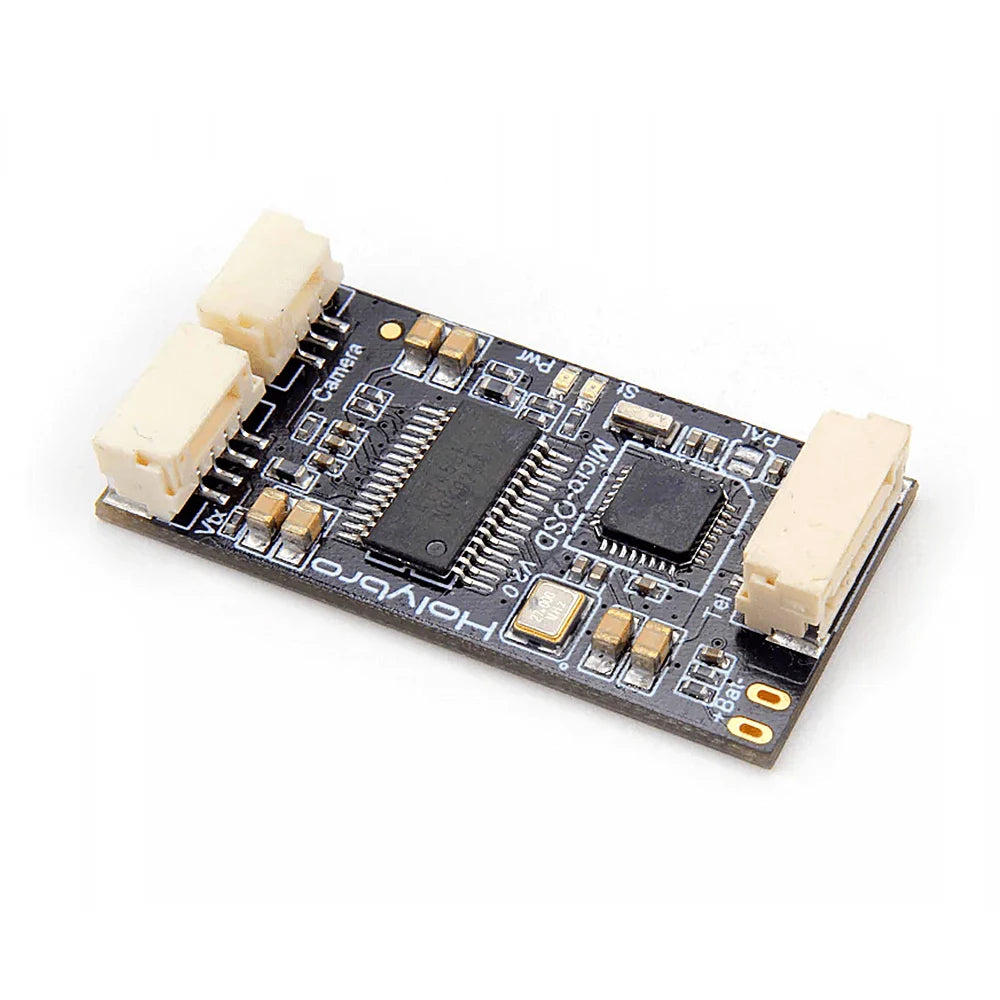

Specifications:

• ATmega328P with Arduino bootloader

• MAX7456 monochrome on-screen display

• GHR connectors

• Solder jumper for PAL video option

• Exposed test points for HSYNC and LOS

• Dimensions:17.5*35mm

• Weight:3g

Note: BAT+ is directly connected with VTx and Camera (Pay attention to the maximum voltage of your equipment)

Note: BAT+ is directly connected with VTx and Camera (Pay attention to the maximum voltage of your equipment)

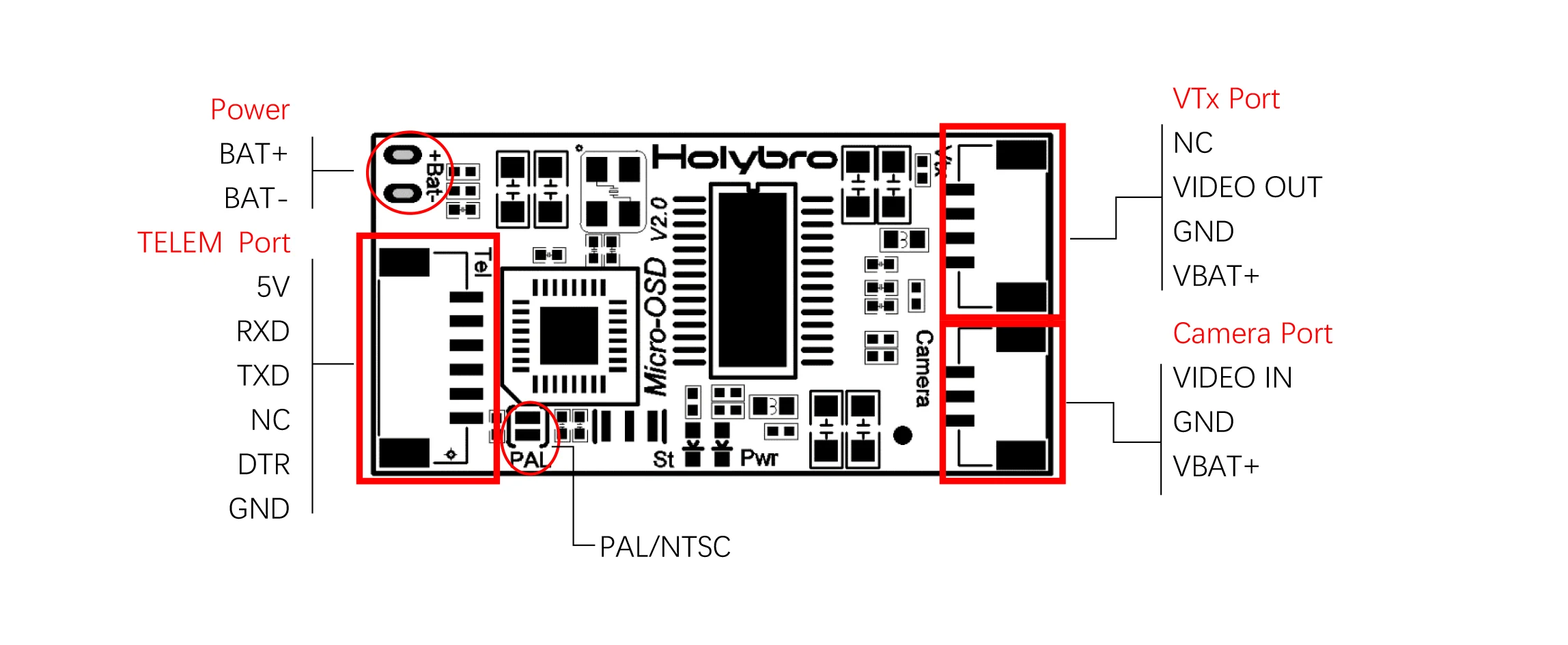

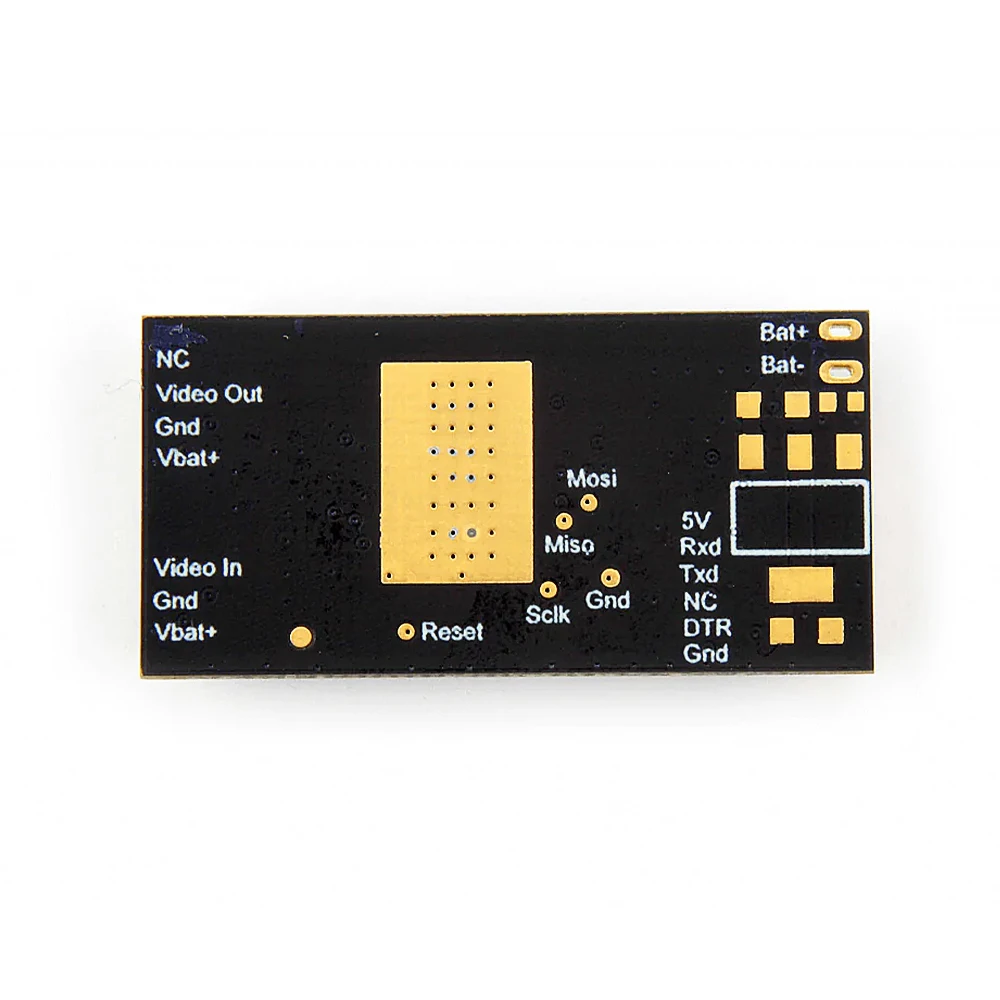

PIN MAP

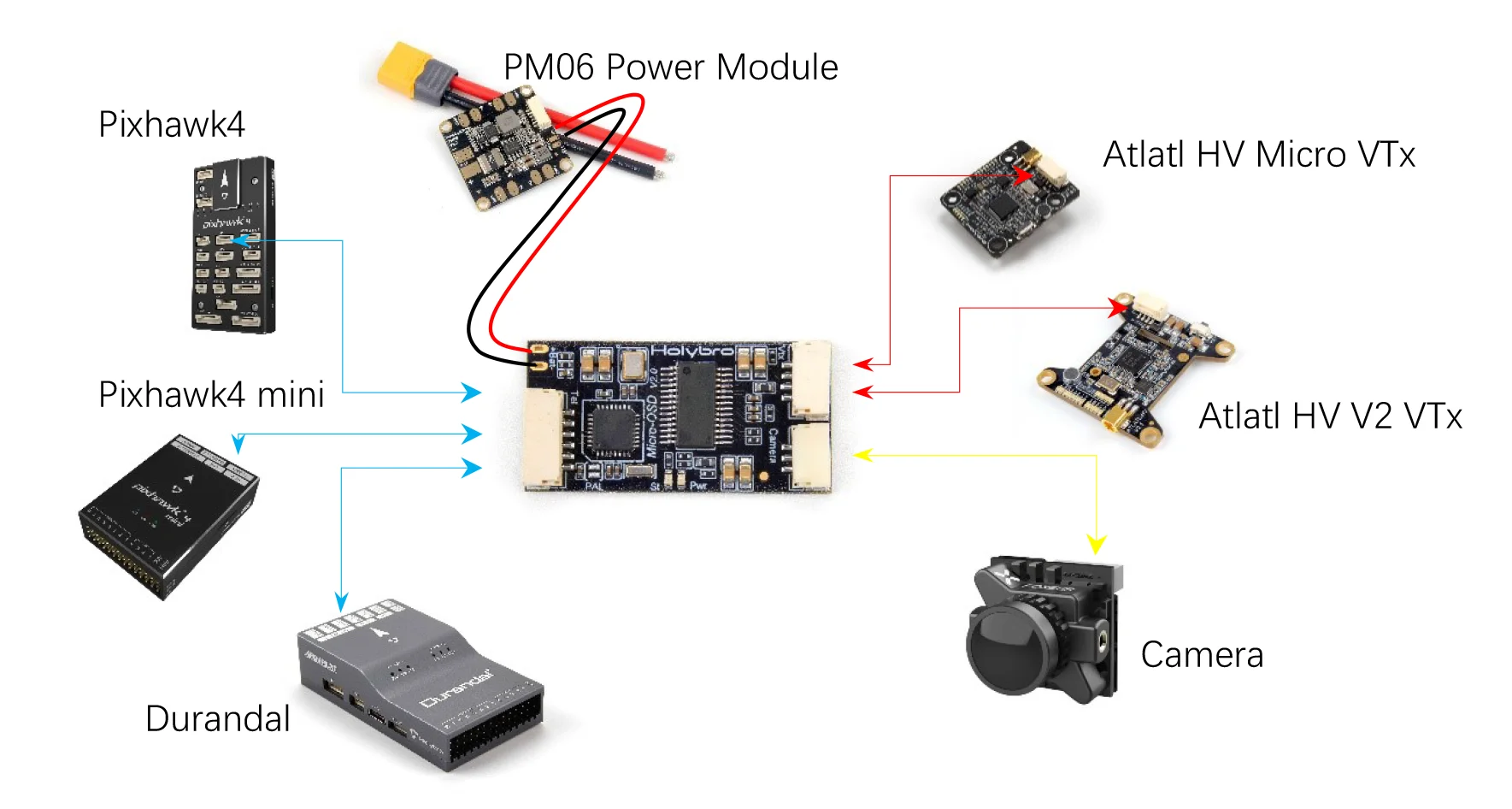

Diagram

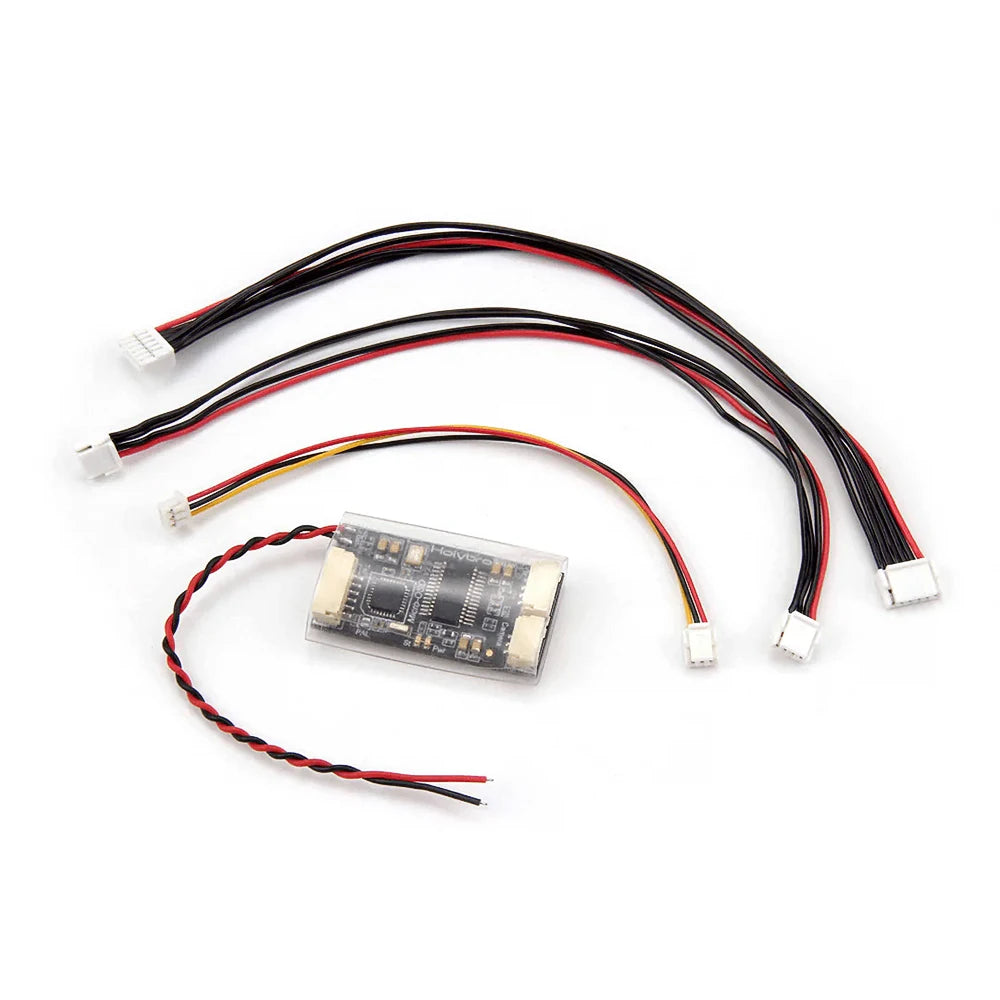

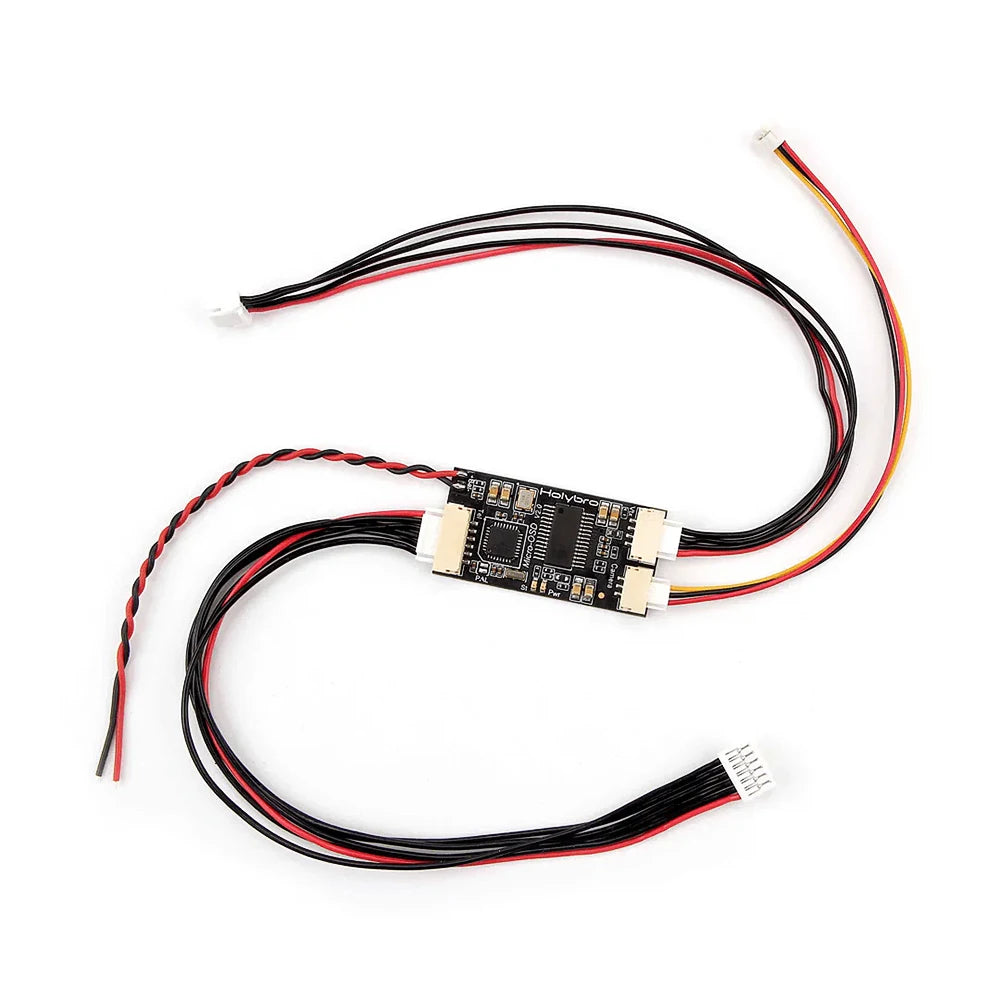

Included:

Micro OSD * 1
GH 6P cable * 1
GH 4P cable * 1
GH 3P cable * 1

Manual:

Holybro_Micro_OSD_V2_Manual.pdf

Download:

Holybro_MicroOSD_v2.0 Update software
