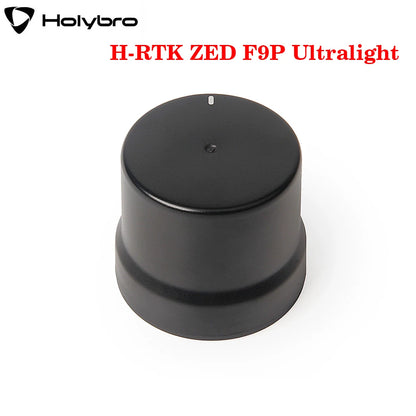

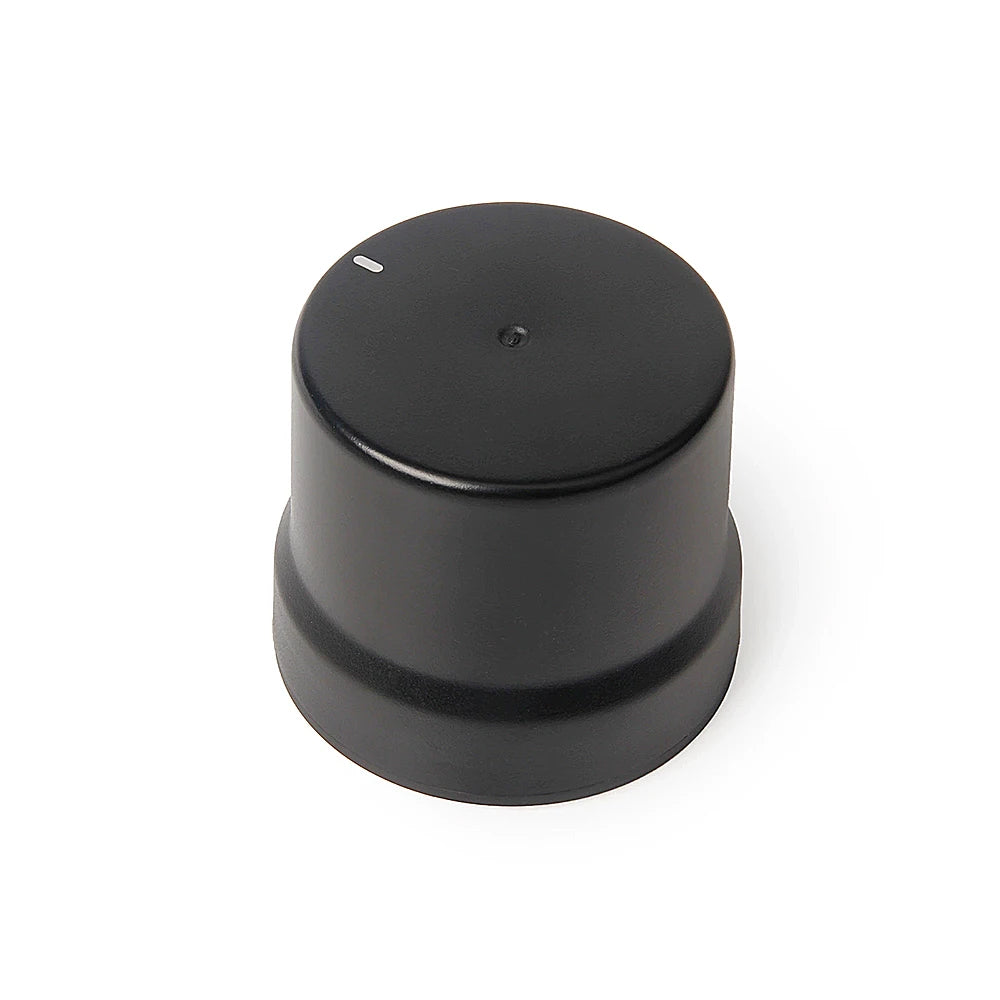

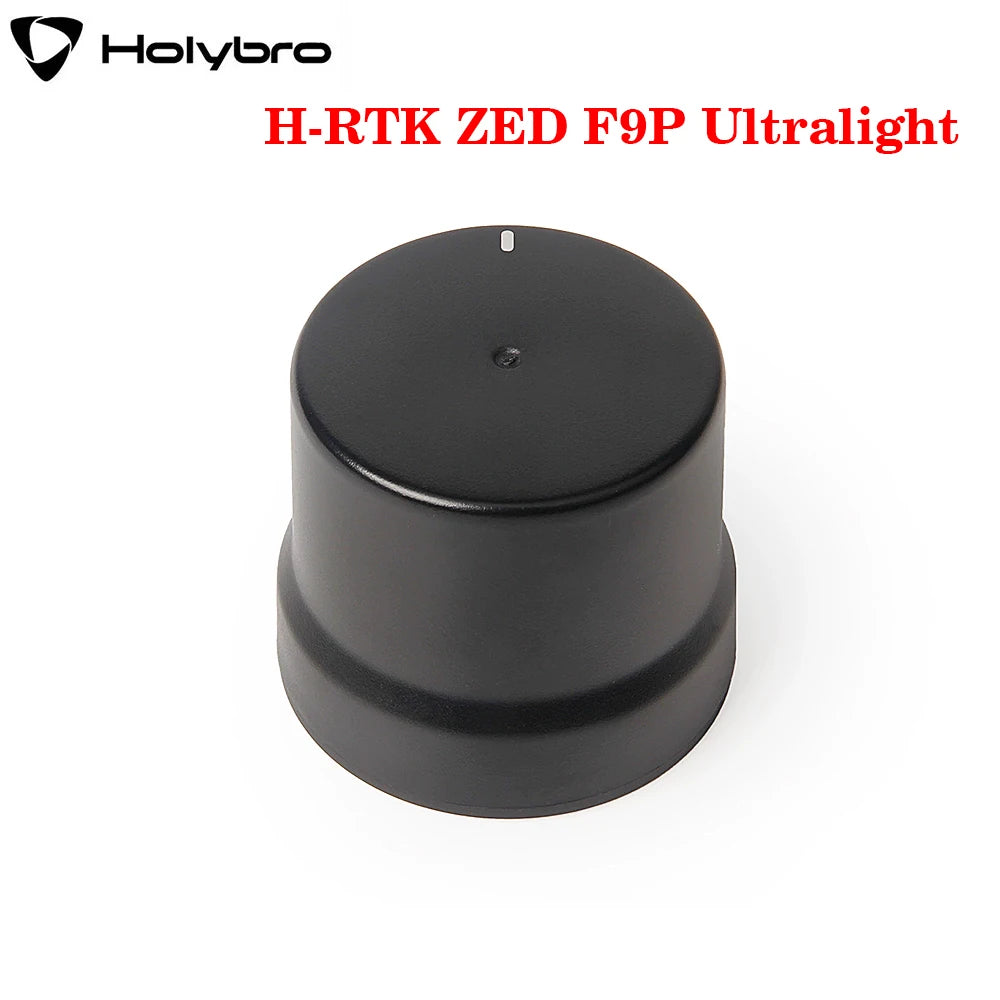

Holybro H-RTK ZED F9P Ultralight Integrated GNSS Module

Holybro H-RTK ZED F9P Ultralight Integrated GNSS Module

$289.41 USD
$0.00 USD $289.41 USD
Oferta Agotado

369 en existencias
Holybro H-RTK ZED F9P Ultralight Integrated GNSS Module with Built-in IST8310 Compass 26g for RC FPV Drone
Specifications

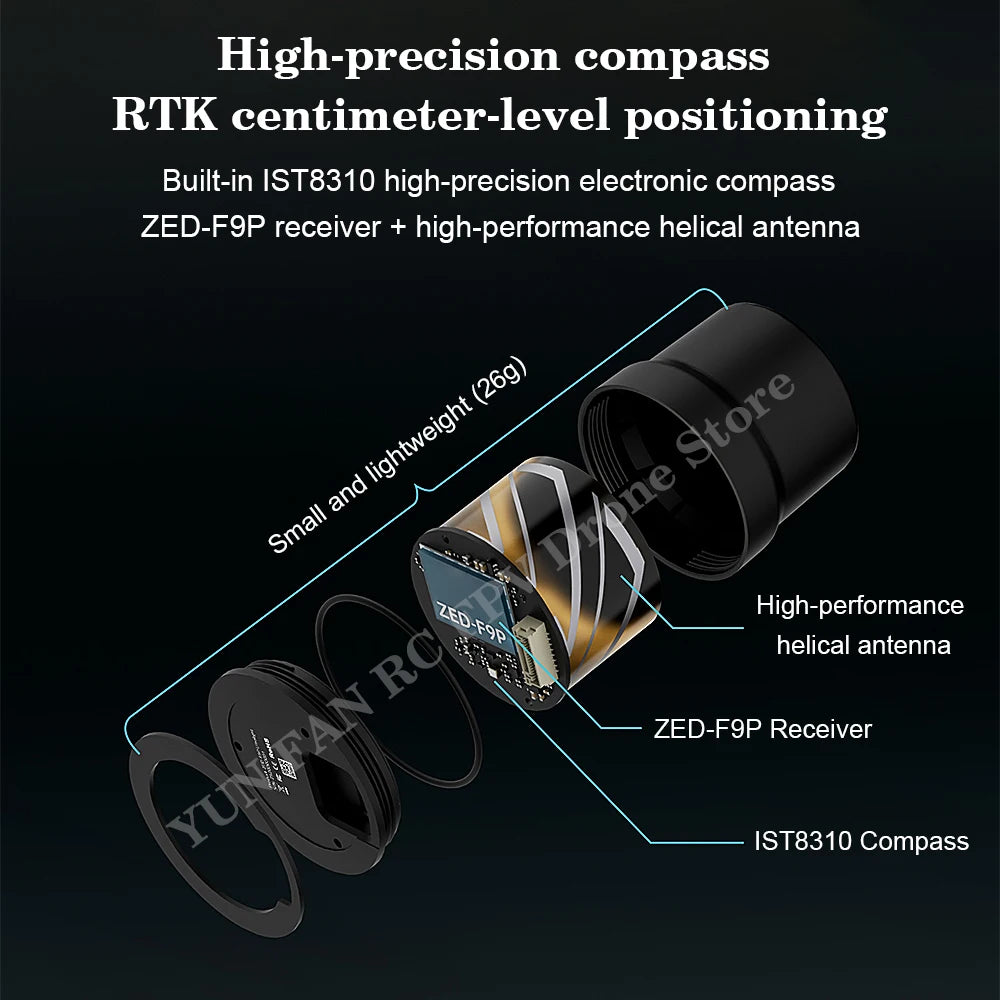

  • Module Type: ZED-F9P high-precision GNSS module

  • Electronic Compass: IST8310 three-axis magnetometer

  • Application Scenario: Mobile station (aircraft platform)

  • Satellite Systems:

    • GPS L1C/A/L2C

    • Galileo E1/E5b

    • GLONASS G1/G2

    • Beidou B1I/B2I

  • Sensitivity:

    • Tracking sensitivity: -167dBm

    • Reacquisition sensitivity: -160dBm

  • Time to First Fix:

    • Cold start: ≤35 s

    • Warm start: ≤20 s

    • Hot start: ≤1 s

  • Position Accuracy:

    • Horizontal accuracy: 1.5m

    • Vertical accuracy: 2.0m

    • RTK positioning: Horizontal 1cm + 1ppm

  • Time Pulse Accuracy: RMS: 30ns

  • Speed Measurement Accuracy: D-GNSS: 0.05 m/s

  • Operating Limits:

    • Maximum acceleration: ≤4 g

    • Maximum altitude: 80000 m

    • Maximum speed: 500 m/s (1800 km/h)

  • Communication Baud Rate: 38400 - 230400 bps (default 115200 bps)

  • Maximum Navigation Update Rate: 10Hz (Please contact us if a higher frequency is needed)

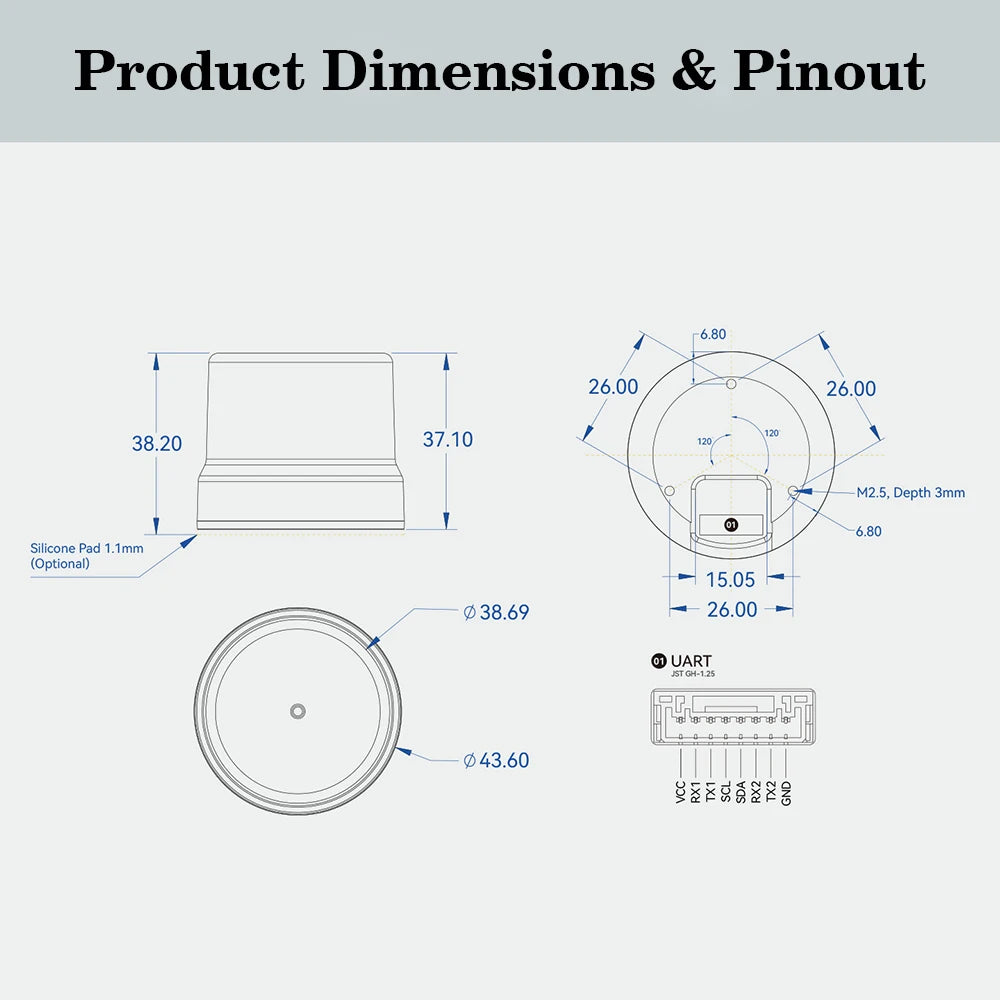

  • Dimensions:

    • Diameter: 43.6 mm

    • Height: 37.1 mm

  • Weight: 26 g
